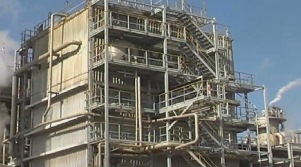

Inspection and Test Plan for Water Tube Boiler

This article, detailing the inspection and test plan for water tube boiler, provides you information about water tube boiler inspection and water tube boiler testing in a manufacturing shop. The draft Inspection and test plan for water tube boilers is provided as well.

Click here if you would like to immediately review the Inspection & Test Plan for water tube boiler draft sheet.

You may need to review this sheet in conjunction with the Third Party Inspection for Water Tube Boiler article.

The ASME Code Section I requirements are normally applied for the inspection and test plan in a manufacturing shop.

The witness of some inspection and testing by third party inspectors is mandatory and cannot be waived.

Some others must only be monitored and full witnessing is not necessary; for these items, the inspection man-days etc. depend on the purchaser’s decision. Some prefer stringent monitoring and even assign a resident inspector in the manufacturing shop, and others relay to the quality control system of the manufacturer and assign only a few days for monitoring points.

These are some of the inspection points that need to be witnessed, checked monitored and reviewed by a third party inspector for a water tube boiler construction.

Inspection and Test Plan for Water Tube Boiler - Important Points

  • Inspection of drums as for vessels
  • Tubes to be inspected at mill
  • All mountings to be inspected and hydraulic tests witnessed at sub-supplier`s works
  • Checking test certificates for all materials and identify the same at Vendor`s works before start of fabrication
  • Checking fit-up and witness back chipping of well seams
  • Ensuring that welding procedure and welding electrodes as are qualified before start of fabrication and welding
  • Steel stacks to be finally inspected and dimensionally checked and spots for radiography to be selected, where applicable, and radiographs reviewed
  • Ducting to be inspected for quality of workmanship and spot-checked for dimensional accuracy
  • Shop hydrostatic test to be witnessed and final inspection to be carried out on fully assembled packaged boilers
  • Witnessing all tests applicable for steam generators

Click on the above link to download a sample draft of water tube boiler ITP.
