What is Valve Backseat Test?
The valve backseat test is performed in the valve with backseat feature. The test shall be performed based on valve manufacturer approved test procedure. The requirement for the test is addressed in API Std. 598.
The backseat feature is a feature that allows valve packing being replaced while it is in the service.
2 Free CPD Hours Courses - Completely Free
Enroll, Watch the Video, Take the Test, Download Your Cert and Submit to the API . 2 free courses are availble each with 2 hours credit. (Total 4 hours) - 1) ASME V Articl II , 2) ASME V Article 6 & 7
The I4I Academy API Source Inspection Fixed Equipment Course covers the valve backseat test. The API 570 Piping Inspector Course, also in API RP 574 - Inspection Practices for Piping System Components, addresses different types of valves with inspection and testing requirements for each of them.

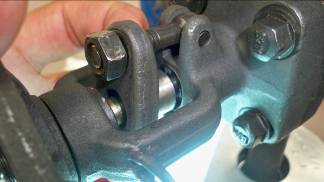

The valve shall be mounted in test bench with fully opened position and valve ends closed. The packing gland shall be loose or packing not installed. The valve body shall be subjected to hydrostatic pressure, and no leak is permissible from packing and packing gland.
Valve Backseat Test Pressure
The test pressure shall not be less than 110% maximum allowable pressure at 38 °C (100 °F). For example, if you have a 900 Ib, 20 inch valve with A216 Gr. WCB material, your MAP will be 2252 psi (as per Table 2-1.1 ASME B16.34). The 110 % of this value will be 2477 psi. So your backseat test pressure will be 2477 psi.
Backseat Test Duration
The valve test duration depends on the valve size as per API Std 598. The test duration is 15 seconds for valve less than 2 inch, 60 seconds for valves greater than 2 inch.
The valve packing gland shall be closely inspected while it is under backseat test pressure. Similar to valve shell test, no leak is acceptable for backseat test.
